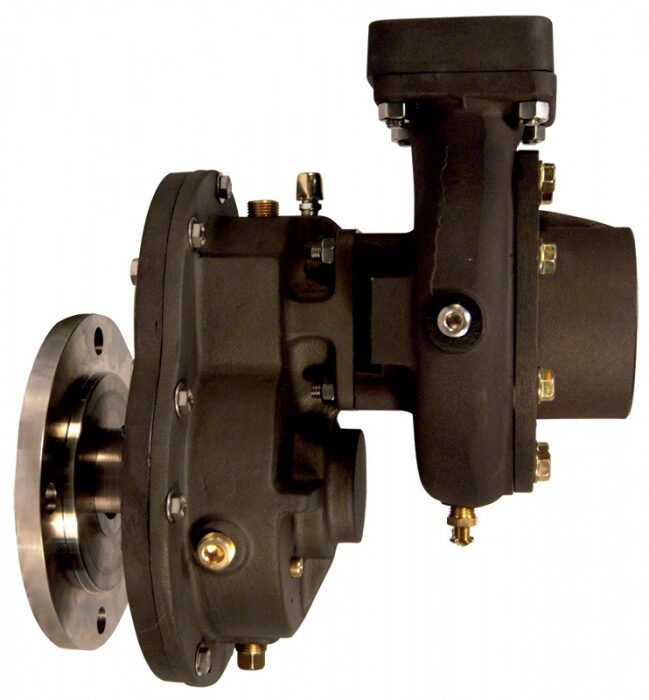

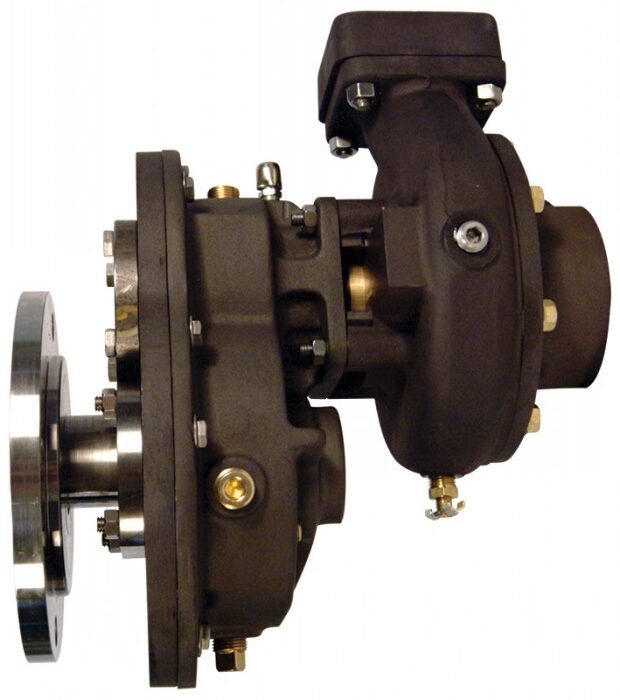

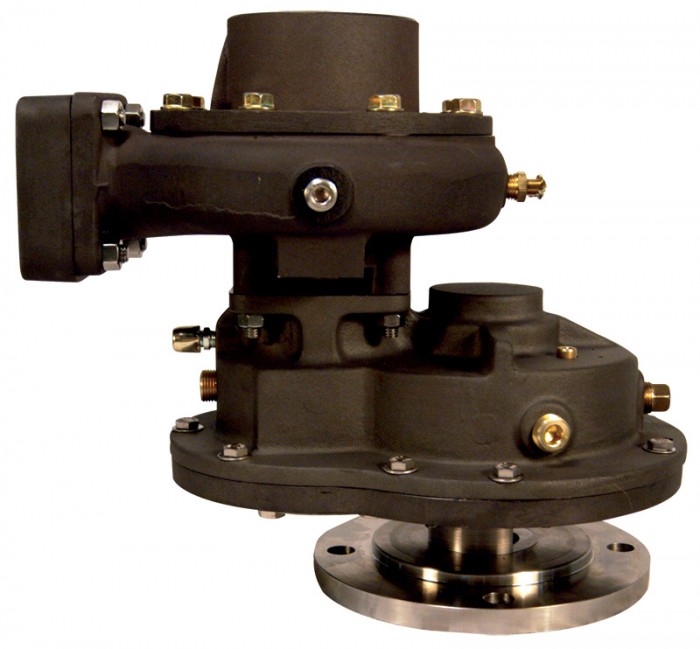

1 1/2AGH
1 1/2AGH
Single Stage, Centrifugal, Hydraulic Driven, Gear Driven
Documents & Downloads
PDF Drawings
DWG Drawings
IGS 3D Files
CAD Files
Repair Manuals
Operation Manuals
Sales Flyers
Performance
- 180 gpm at 150 psi
- 100 gpm at 200 psi
- 50 gpm at 250 psi
Features
- Aluminum alloy casing
- Aluminum alloy gear case
- Bronze impeller and wear rings
- Stainless steel impeller shaft
- 13T 16/32 involute spline
- Heat-treated alloy steel helical gears
- Ball bearing construction
- SAE “B” hydraulic drive adapter
- Mounting angles
- Mechanical seal
- 2″ NPT suction
- 2″ NPT flange on discharge
Motor
N/A
Engine
N/A
Weight
45 lbs. (21 kg)
Dimensions
12″L x 9″W x 13″H
Applications
- Mini Pumper
- Tanker
- Wildland/Attack Fire
Options
N/A
Technology
N/A
