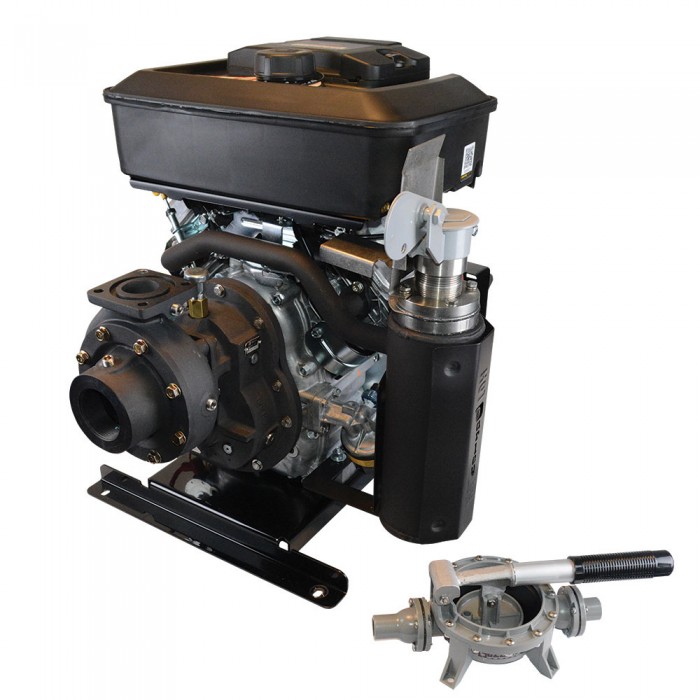

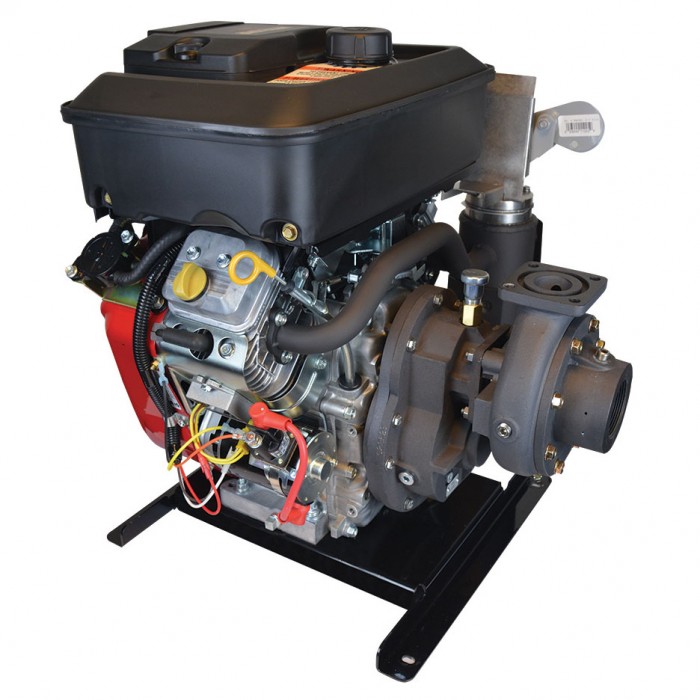

1-1/2AGE 18 VX
1-1/2AGE 18 VX
High Pressure, Medium Volume, Gear Driven, Engine Mounted. Meets ISO Class 9 Performance Ratings.
Documents & Downloads
PDF Drawings
DWG Drawings
IGS 3D Files
Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
Performance
- 120 gpm (454 L/M) @ 130 psi (9.0 bar)
- 100 gpm (378 L/M) @ 170 psi (11.7 bar)
- 50 gpm (189 L/M) @ 250 psi (17.2 bar)
Features
- Aluminum alloy casing and discharge valve
- Aluminum alloy gear case and engine adapter
- Bronze impeller and seal ring
- Stainless steel impeller shaft
- Mechanical seal
- Heat-treated alloy steel helical gears
- Ball bearing construction pump and engine
- 2″ NPT suction
- 4 bolt bare flange outlet
Motor
N/A
Engine
Briggs & Stratton Vanguard: 4 cycle, 18 HP, V-twin, OHV, replaceable oil filter, 34.75 cu. in. displacement, 12-volt starter, recoil rope start back-up, 16 amp regulated alternator, 8.35 qt. fuel tank or shipped loose 3-gallon tank.
Weight
145 lbs. (66 kg)
Dimensions
27″L x 21″W x 25″H
Applications
- Booster Reel
- Multiple Hand Lines
- Wildland/Attack Fire Suppression
Options
Adapters, Gauge, Battery, Caps
Technology
N/A
