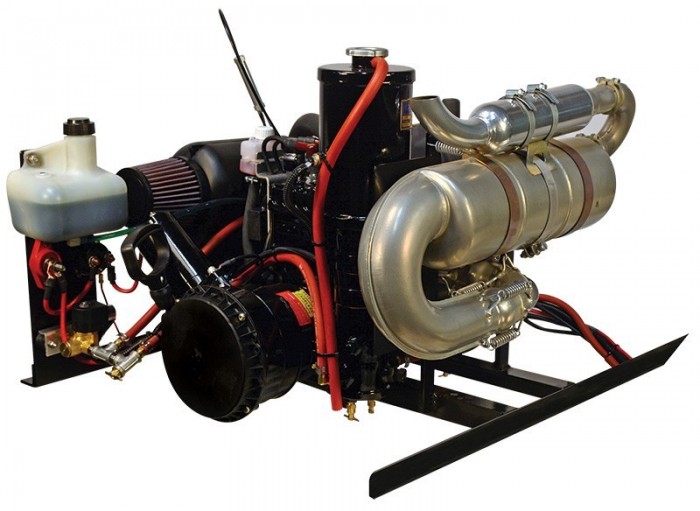

HE 64RS “HERCULES” Portable Pump – Marine Version








HE 64RS “HERCULES” Portable Pump – Marine Version
Ultra High Volume Performance Skid Mount Pump
Documents & Downloads
DWG Drawings
Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
Performance
- 575 gpm (2176 L/M) @ 100 psi (6.9 bar)
- 320 gpm (1211 L/M) @ 200 psi (13.8 bar)
- 165 gpm (625 L/M) @ 250 psi (17.2 bar)
Features
- 170W lighting and recharging coil
- Aluminum alloy casing
- Bronze impeller and seal ring
- Stainless steel impeller shaft
- Mechanical seal
- Heat exchanger with thermal protection circuit
- Wrap around frame with fold-out handles
- Control panel with governor, ignition switch and light, starting switch, and compound pressure gauge
- Loss of prime shut down
- Vernier throttle
- Electronic Engine Governor
- 4″ NH suction intake with screen
- 3″ NPT discharge
Engine
Rotax 582: Liquid-cooled, 64 HP, 12-volt electric starter, recoil rope start back-up, 6 gal. fuel tank, hose, and adapter
Weight
215 lbs. (199 kg)
Dimensions
34″L x 30″W x 26″H
Applications
- Fire Boat
- Booster Tank Fill
- Multiple Hand Lines
- Wildland/Attack Fire Suppression
Options
- Adapters
- Gauge
- Battery
- Caps
Technology
N/A
